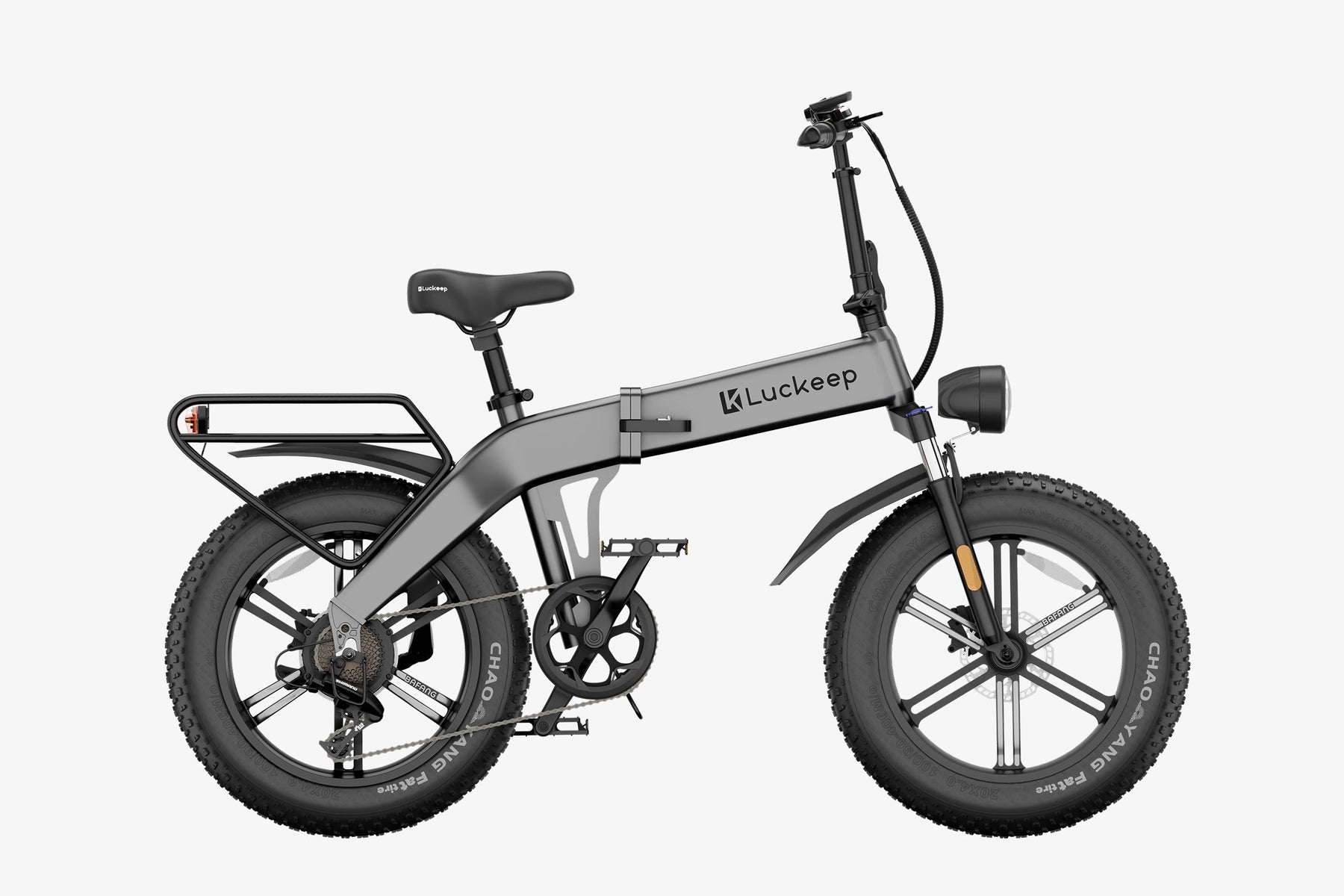

Luckeep X1 Features

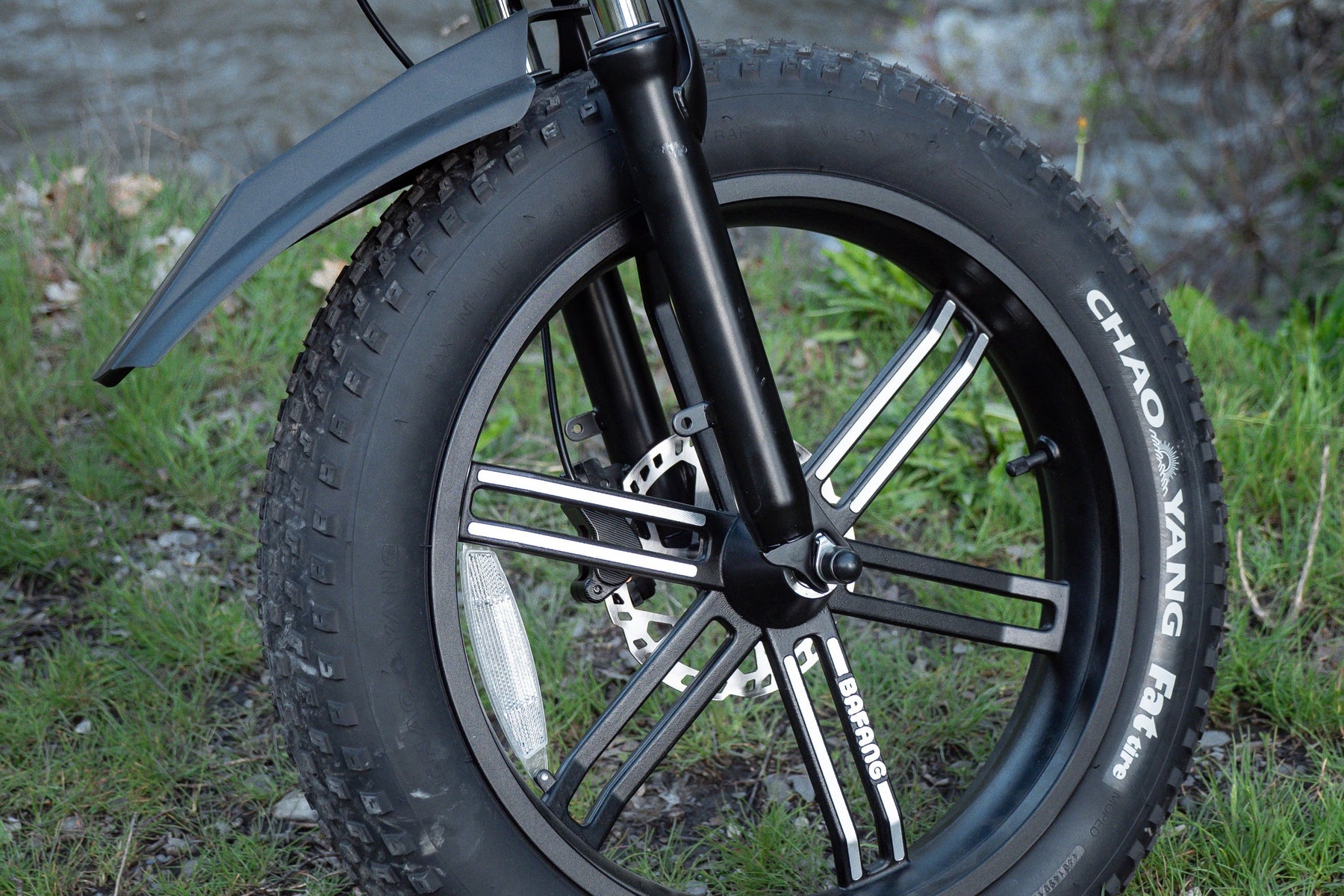

20x4.0" ChaoYang Fat Tire
Special tires for outdoor use, anti-puncture and anti-flat tires, alleviating vibrations between the tires and the ground during high-speed driving for enhanced comfort.
Removable Lithium-ion Battery
The X1 ebike features a Safety Certified Battery (UL2849 Standard) with a capacity of 720Wh. It only takes 4 hours to fully charge the battery

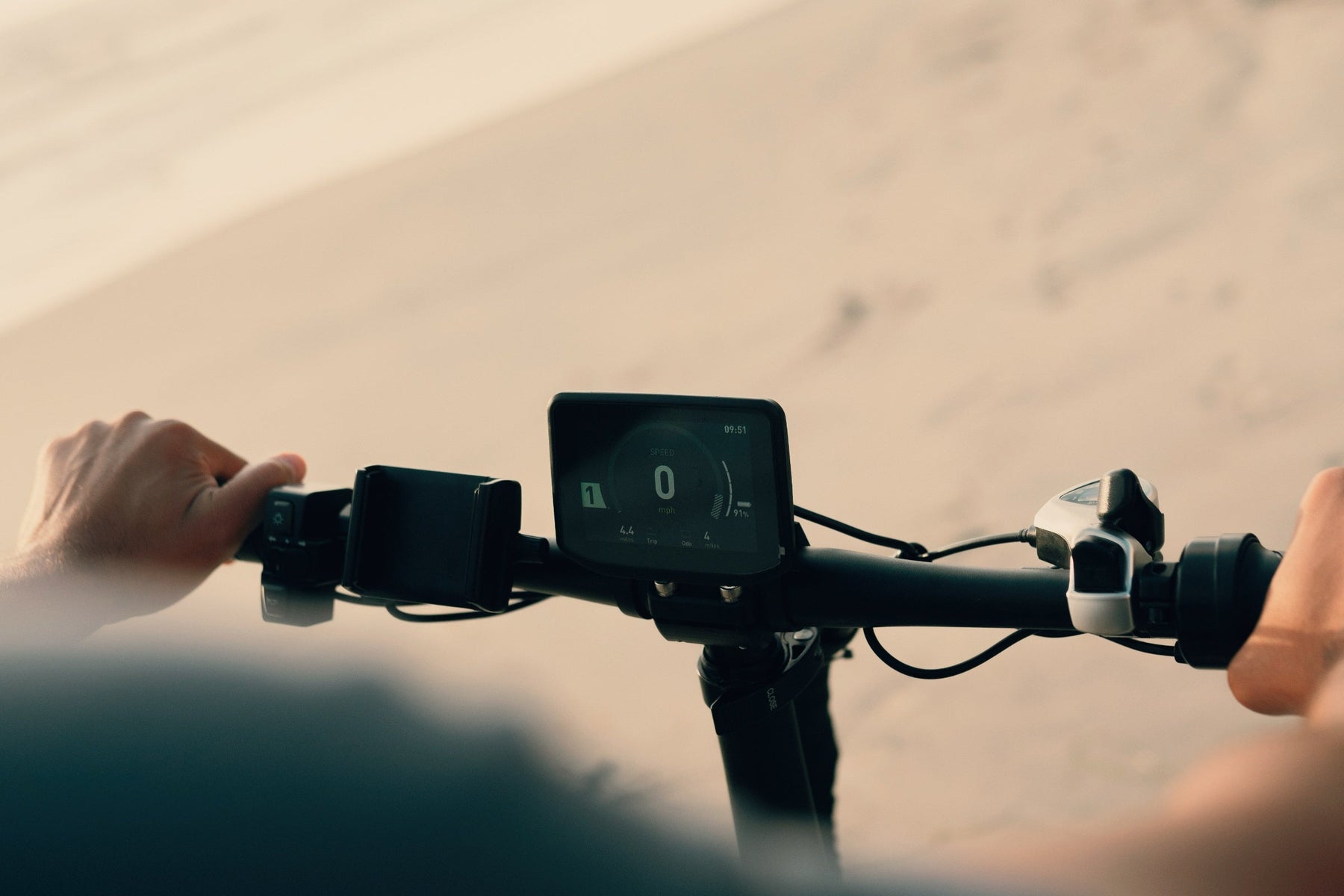

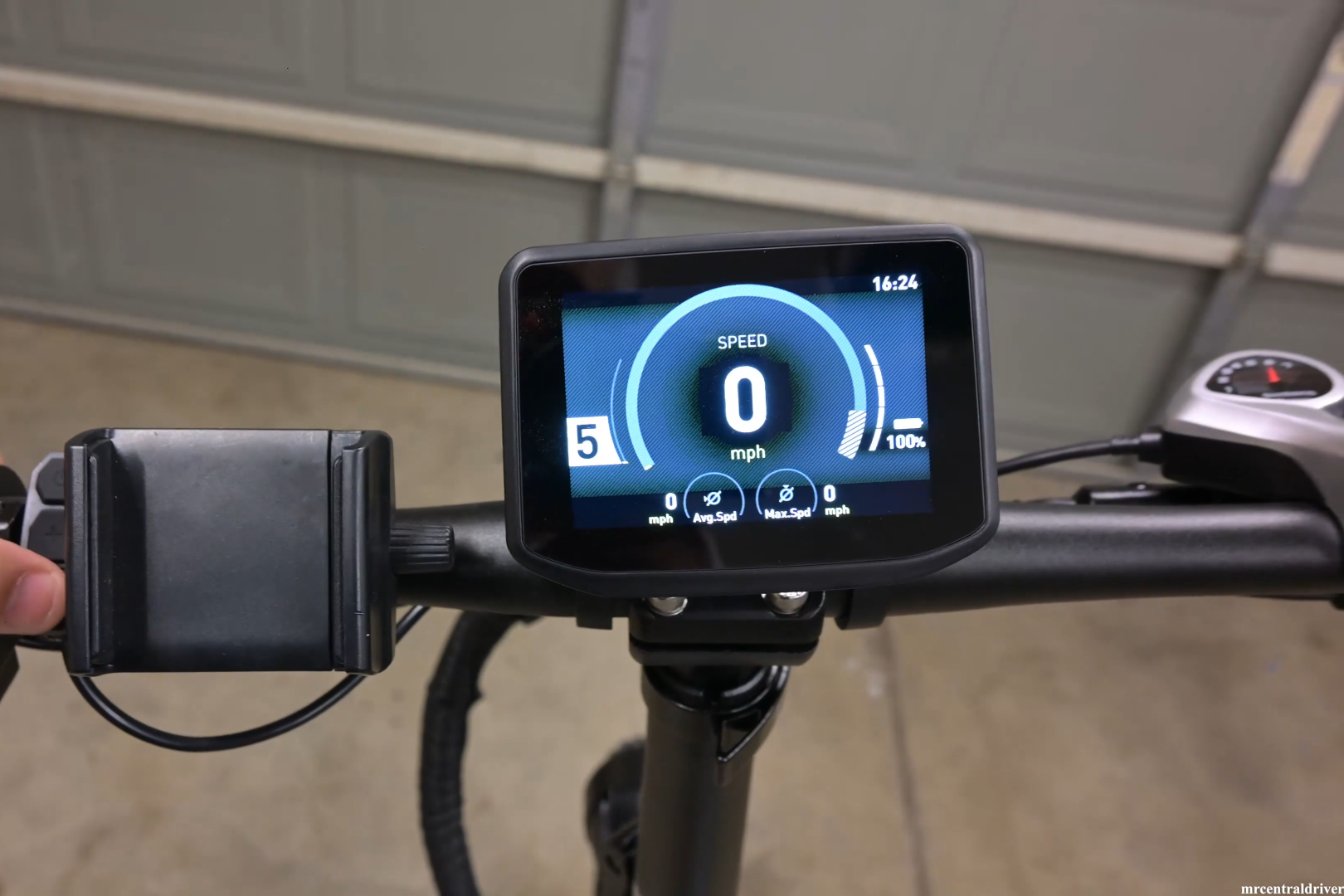

3.5" IPS Full Color Display
Track your battery life, distance traveled, pedal assist level, and more at a quick glance with the IPS Display. Charge your smartphone via its concealed USB

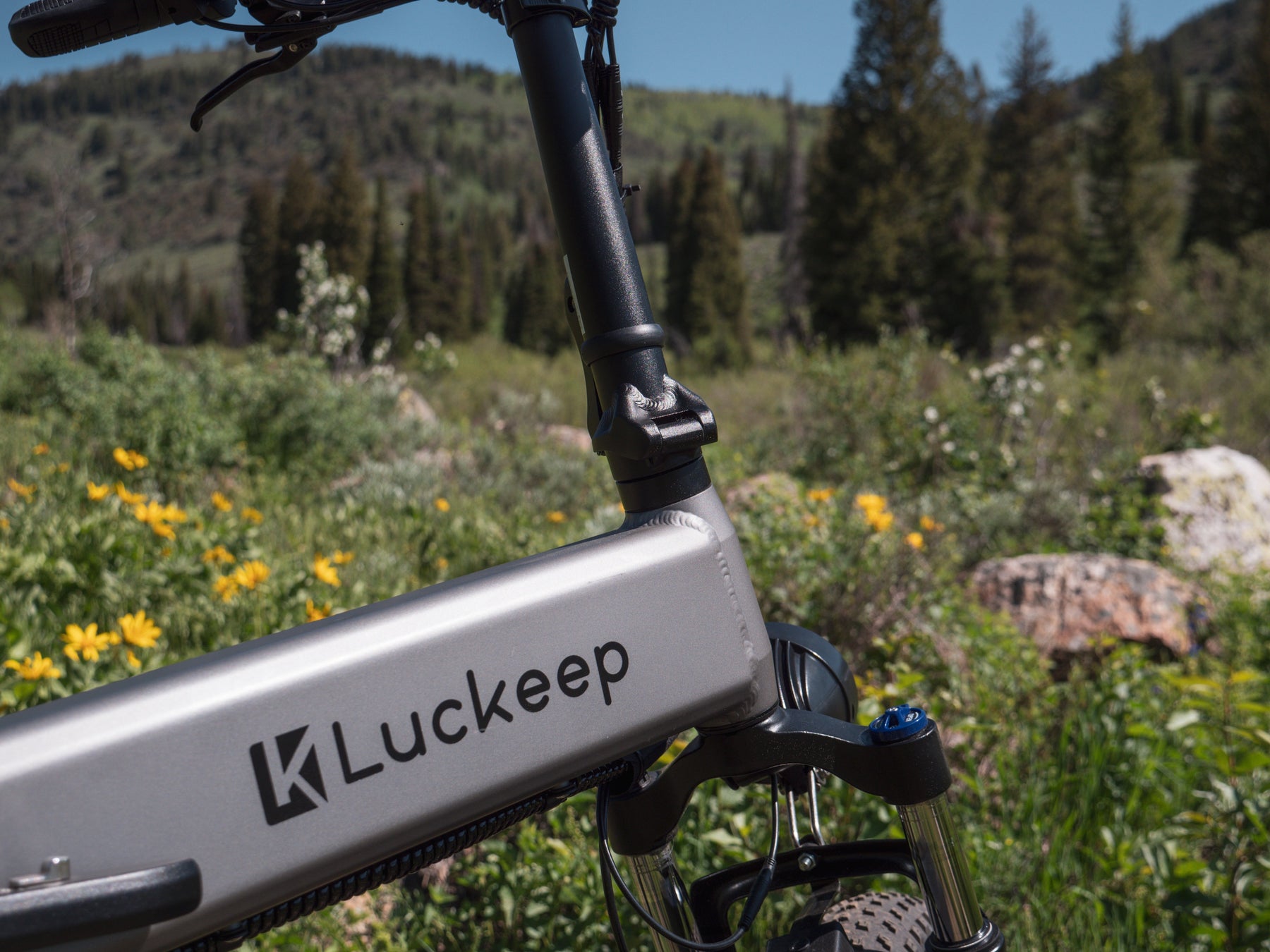

Front Suspension
The enhanced front suspension effortlessly absorbs every bump, ensuring a stable and exhilarating ride on any terrain.
Hydraulic Disc Brakes
F&R Hydraulic Disc Brakes,160mm Rotors, Shorten stopping distances by an average of 50% over mechanical brakes, providing a safer ride in all weather conditions.

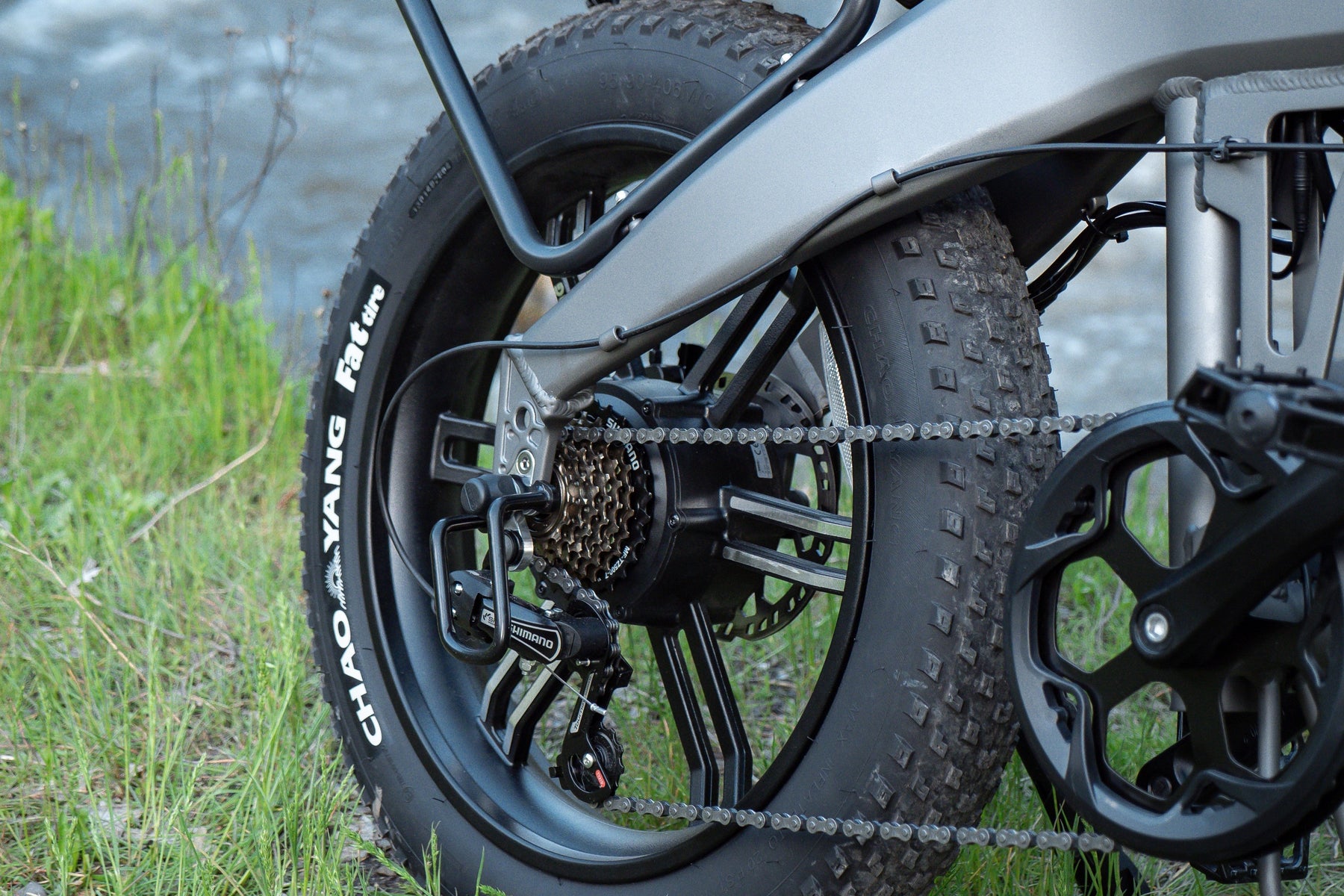

Shimano 7-Speed
Our twist throttle provides smooth and precise control over your electric bike's power output. Not only does it reduce hand fatigue during rides, but a simple twist allows you to accelerate effortlessly and maintain your desired speed.
20x4.0" ChaoYang Fat Tire
Special tires for outdoor use, anti-puncture and anti-flat tires, alleviating vibrations between the tires and the ground during high-speed driving for enhanced comfort.
Adjustable Turn Signals
Luckeep X1 feature a bright 200 lumen headlight for safer night riding and rear-facing turn signals that let cars, pedestrians, and fellow cyclists know your next move.

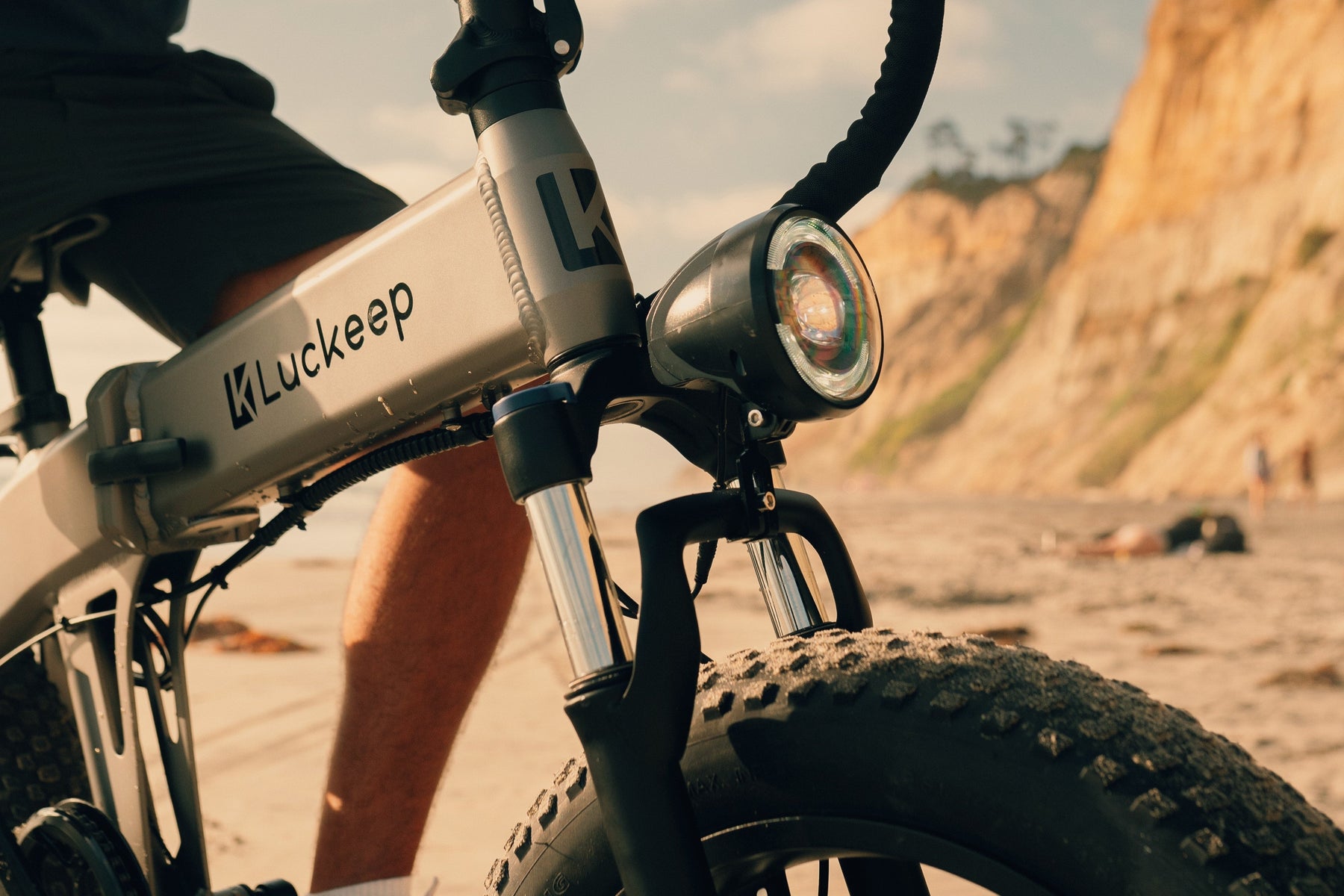

LED Headlight
Comply with CE certification, ISO standard, waterproof IP6, light brightness 70LUX. This headlight offers double the brightness, casting a powerful beam that cuts through darkness.

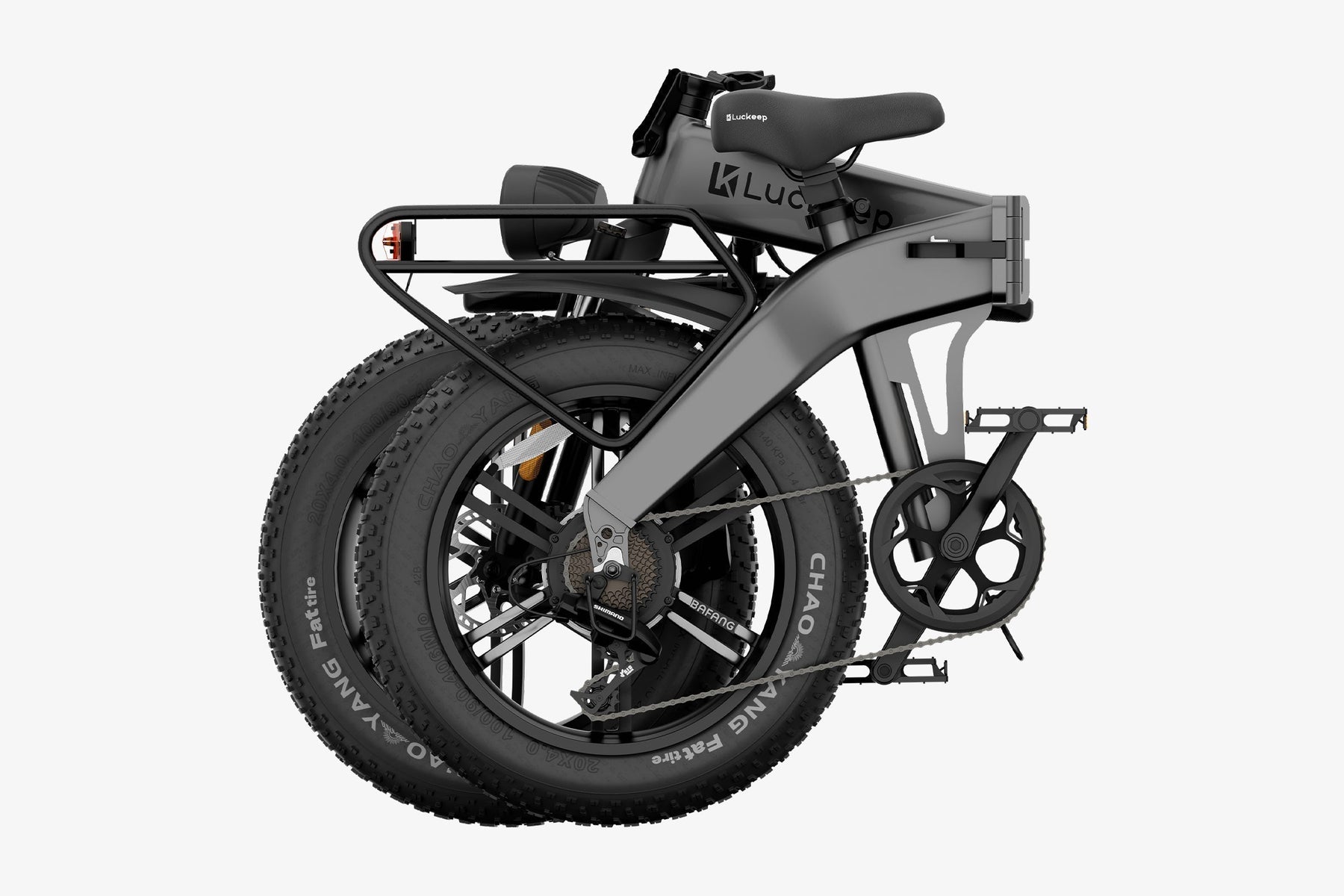

X1 takes pride in its cutting-edgequick multi-stage disassembly design. With no need for cumbersome tools, just a few simple steps allow for the rapid disassembly of various components, ensuring easy portability and storage.
The rear rack can load up to 120 Ibs. With pedboards on both sides, you can easily attach various things like water bottle, bike lock and so on.
Under the assistance of level 5 pedal assist, it provides 80 Nm of torque in just 2 seconds. The motor, a result of Luckeep’s collaboration with Bafang, utilizes a brushless gear structure, with a peak power of up to 1400W. It enables effortless control over riding speeds from 1 to 5 gears, offering a customizable and intuitive riding experience.
With 20-inch x 4-inch fat tires, sturdy frame design, and adjustable front suspension fork, it's like a reassuring cruiser that allows you to navigate any terrain with ease.

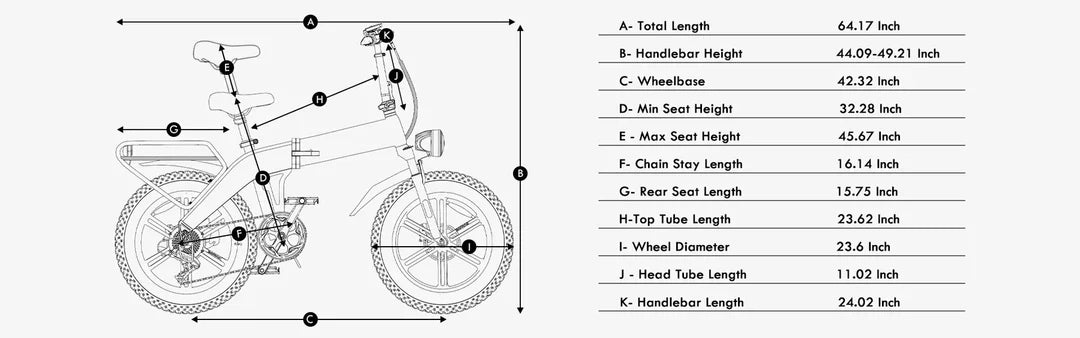

Technical Specifications
General Info

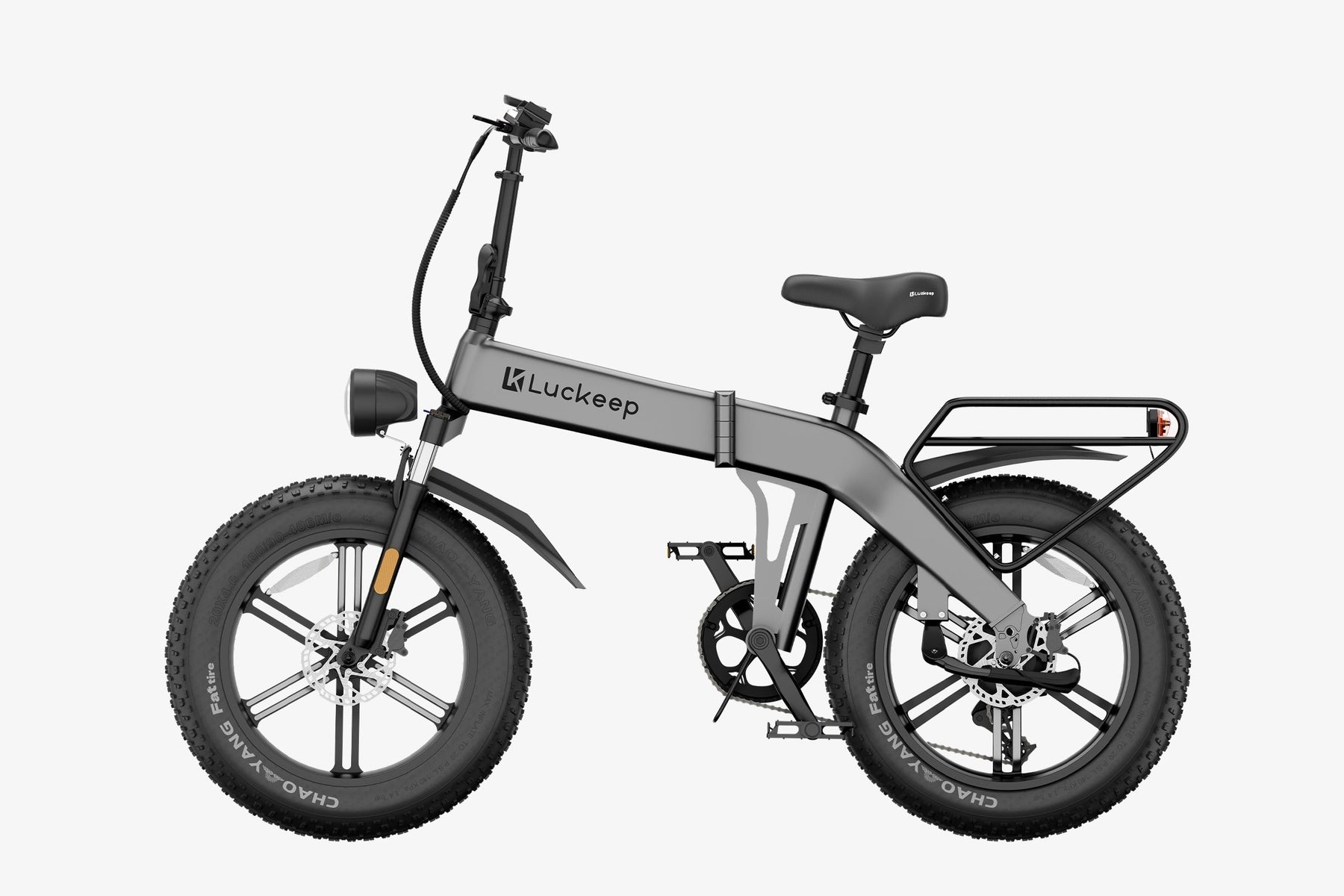

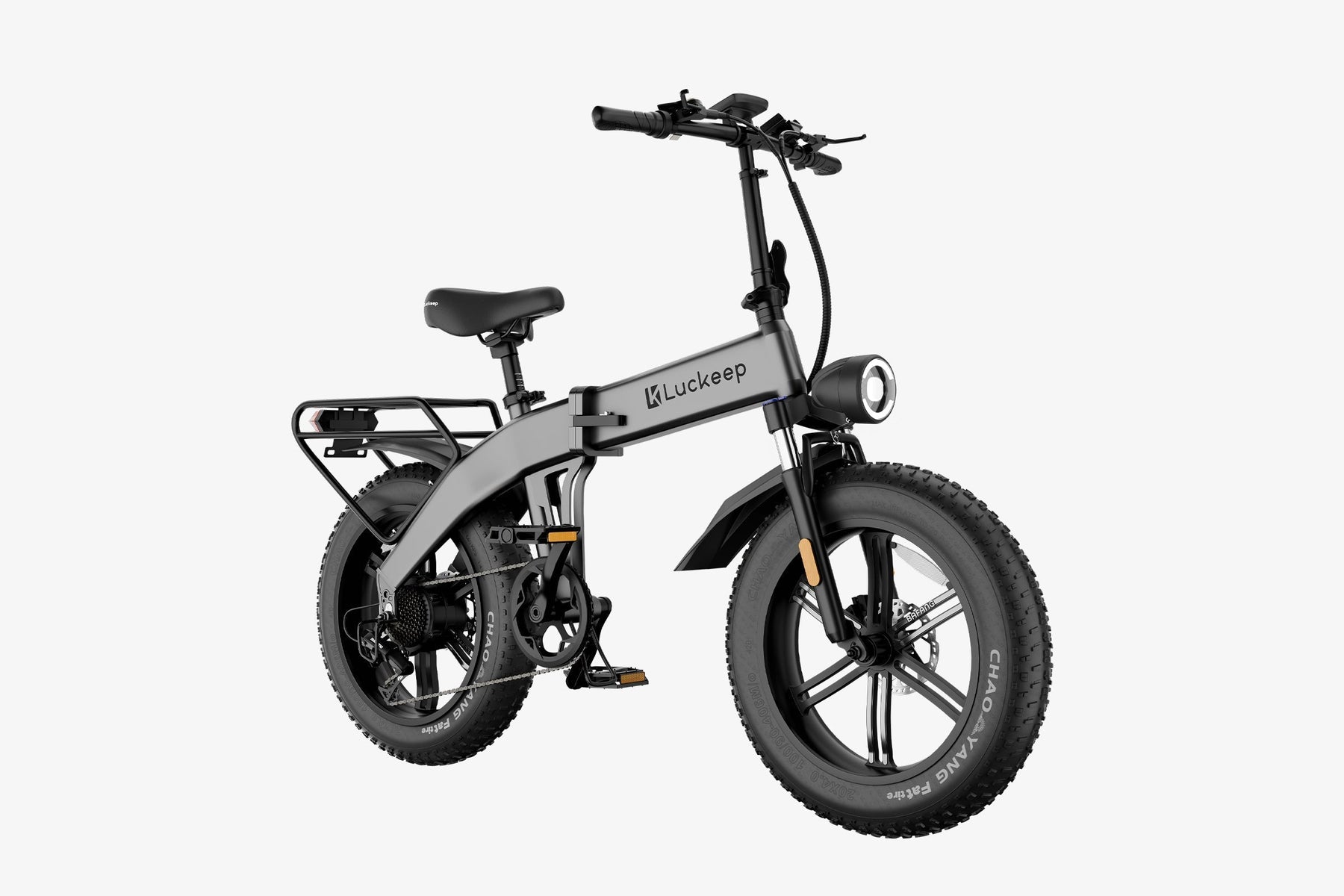

- MODEL: Luckeep X1 Foldable Ebike
- IDEAL USE: All-terrain
- RANGE: 40 miles on throttle mode, 60 miles on pedal assist mode
- SPEED: Up To 28 MPH on Throttle, (You can contact our official customer service to unlock speeds of up to 32 mph.)
- WEIGHT: 76 lbs (Battery Included)
- TOTAL WEIGHT LIMIT: 330 lbs
- FOLDING: Yes
- RIDER HEIGHT: 5'4"-6'4"FT
- PEDAL ASSIST: 5 levels
Frameset
- FRAME: 6061 Aluminum Alloy
- FORK: Suspension Fork with 80mm Travel, with Lockout
- FRAME STYLE: Step-Over
Wheelset
- RIM: Aluminum Alloy
- SPOKES: Aluminum Alloy
- TUBES: Butyl Rubber, Schrader Valve
- TIRES: 20x4.0" ChaoYang Puncture Resistant Magnesium alloy Fat Tire
Ebike System
- THROTTLE: Twist Throttle with Cruise Control
- MOTOR: 1400w (peak), 750w (sustained), 48VBAFANG Brushless Rear Hub Motor with 85Nm
- DISPLAY: 3.5" IPS Display LED Integrated with APP Control
- BATTERY: Removable Internal Lithium-ion 48V 15AH (720Wh), UL 2849 Compliant
- SENSORS: Speed Sensor, Brake Sensor
- CHARGER: 54.6V 3.0A, US Standard 3A Fast Charger, 4-5 Hour Charging Time
- LIGHTS: Inclued
- BRAKES: F & R Hydraulic Disc Brakes, 160mm Rotors
- Controller: 48V, 25±1A
Drivetrain
- BOTTOM BRACKET: Square Taper, Sealed, Speed Sensor
- PEDALS: 9/16"
- REAR DERAILLEUR: 7 Speed Shimano Rear Derailleur
- CASSETTE: Shimano 7-Speed
- SHIFT LEVER: 7 Speed Trigger
